Description

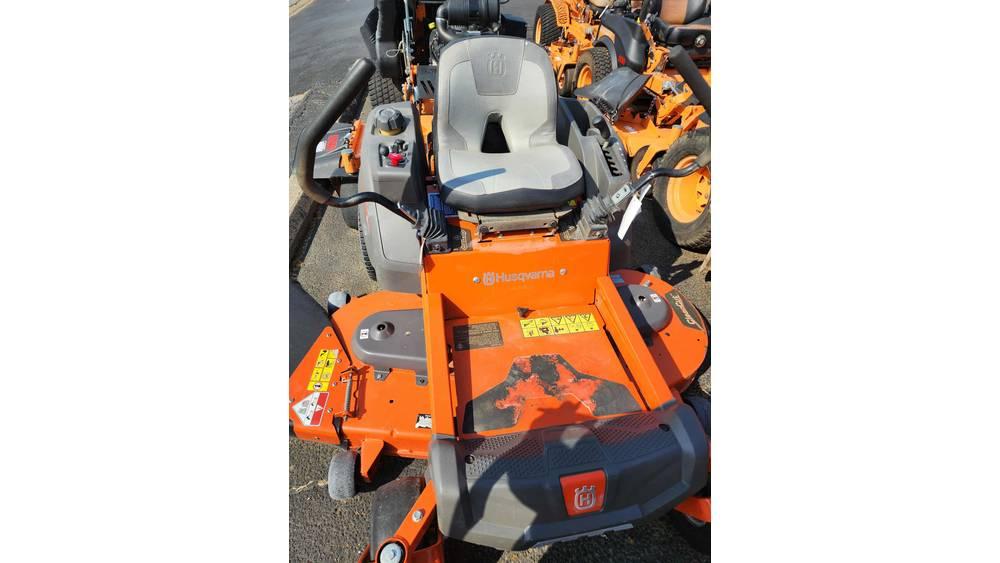

Performance and style hit the grass running with the all new Z200 Series Zero Turn Mowers. Cutting edge design, proven performance and new innovative features combine to make lawn maintenance an event instead of a chore.
Key Features
ClearCut™ fabricated cutting deck: The new fabricated design features welded 10 gauge steel construction with additional welded reinforcement strips for maximum durability
Kawasaki engine: Kawasaki engines offer smooth, quiet, reliable power. Heavy-duty components offer long life and electric start is standard.
Maintenance-Free Transmission: Worry free performance with maintenance free, integrated zero-turn transmissions.
Rugged frame and casters: The robust frame and casters ensure durability and reduced chassis flex.
Capacity
Speed forward max: 6.5 mph
Speed forward min: 0 mph
Cutting deck
Cutting width: 54 in
Cutting deck type: ClearCut™ – Fabricated
Cutting methods: Collect/Mulch/Side discharge
Cutting deck material: Steel
Deck thickness: 11 gauge
Cutting height steps: 6
Blade engagement: Electric clutch
Clutch rating: 87 ft.lb
Blades: 3 pcs
Anti-scalp wheels: 6
Nose roller: No
Deck lifting system: Manual, hand operated
Powder-coated cutting deck: Yes
Spindle/mandrel type: Cast iron
Greasable mandrels: Yes
Deck Wash Port: Yes
Cutting height, min (approximate): 1.5 in
Cutting height, max (approximate): 4 in
Dimensions
Base machine, length: 75 in
Base machine, height: 40 in
Base machine, width (chute down): 67 in
Base machine, width (chute up): 56 in
Weight: 595 lbs
Tire size, front Width: 5 in
Tire size, front Diameter: 11 in
Tire size, front Diameter wheel: 6 in
Drive system
Transmission type: Hydrostatic
Transmission manufacturer: Hydro-Gear
Transmission model: ZT-2200
Engine
Motor/engine manufacturer: Kawasaki
Engine name: FR Series
Power output: 23.0 hp
Cylinder displacement: 44.30 cu.inch
Cylinders: 2
Air filter type: Auto-type Paper
Power/fuel type: Gasoline
Engine lubrication type: Full pressure with oil filter
Oil filter: Yes
Fuel tank volume (with reserve): 3.5 gal (US)
Fuel tank location: Side (Single)
Equipment
Seat material: Vinyl
Seat back height: High
Hour meter type: Digital with pre-programmed service intervals
Cup holder: Yes
Armrests: No
ROPS: No
Seat type: 15″ high back
NOTES:
Standard – 967 95 40-02
